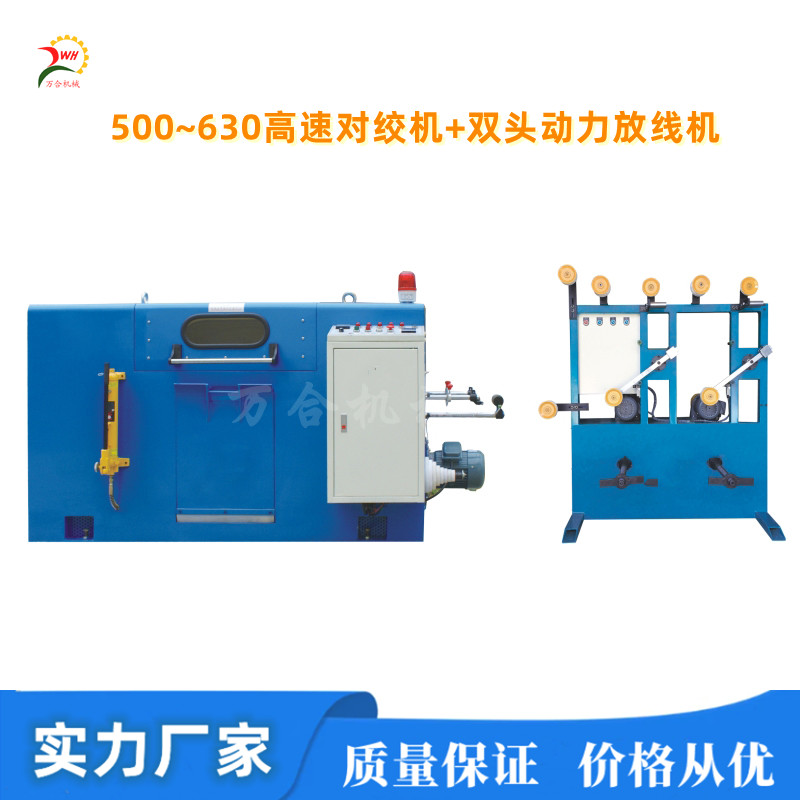

双头动力放线架+Φ500~630高速对绞机

双头动力放线架+Φ500~630高速对绞机

用途:    适用于电话线、网络线、芯线对绞用。

USE:    Suitable for twisting telephone wires, network wires, and core wires.

13829120479
产品详情

Φ500~630高速对绞机+双头主动放线架

Φ500~630㎜High-speed pair twister + Double-head active Pay-off frame


一、用途Application:

适用于电话线、网络线、芯线对绞用。

Suitable for twisting telephone wires, network wires, and core wires.

二、技术参数Technical Parameters:


型 号Model

WH-HF500/630

回转速度Rotate speed

MAX.1800RPM

驱动马达Drive motor

7.5HP Motor+Controlled inverter

单根线径Diameter of each wire

Φ0.6~1.5㎜

绞   距Twist pitch range

11.00~123.00mm

绞 向Twisting direction

左右绞向可调,“S” or “Z” direction

线盘装铜量Weight of conductor on reel

300~450㎏

机械尺寸Mechanical Dimensions

L2690×W1480×H1460

机械重量Machine net weight

2200㎏

使用电源Voltage frequency

50HZ/380V

排线装置Cable device

加强型精密光杆排线器,排辐、排距均可调整

Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will

收线张力Take-up tension

磁粉离合器控制张力、大小可调节,被拉线不变型。

The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape.

保护功能Protective function

⑴长度到达设定参数自动停机

The length meter will automatically stop when it reaches the set parameters;

⑵设备内部和外部断线,自动停机报警The internal and external disconnection of the equipment will automatically stop and alarm;

⑶安全罩打开自动停机

It will stop automatically when the lift is incorrect

⑷升降不正确自动停机

It will stop automatically when the safety cover is opened。

⑸红色警示灯:故障停机

Red warning light: shutdown due to failure
