一、用途Application：适用于软/硬导体线、电子线的绞合。如：裸铜线、漆包线、镀锡线、铜包铝、合金线；电源线、电话线、音频线、视频线、汽车线、网络线等。

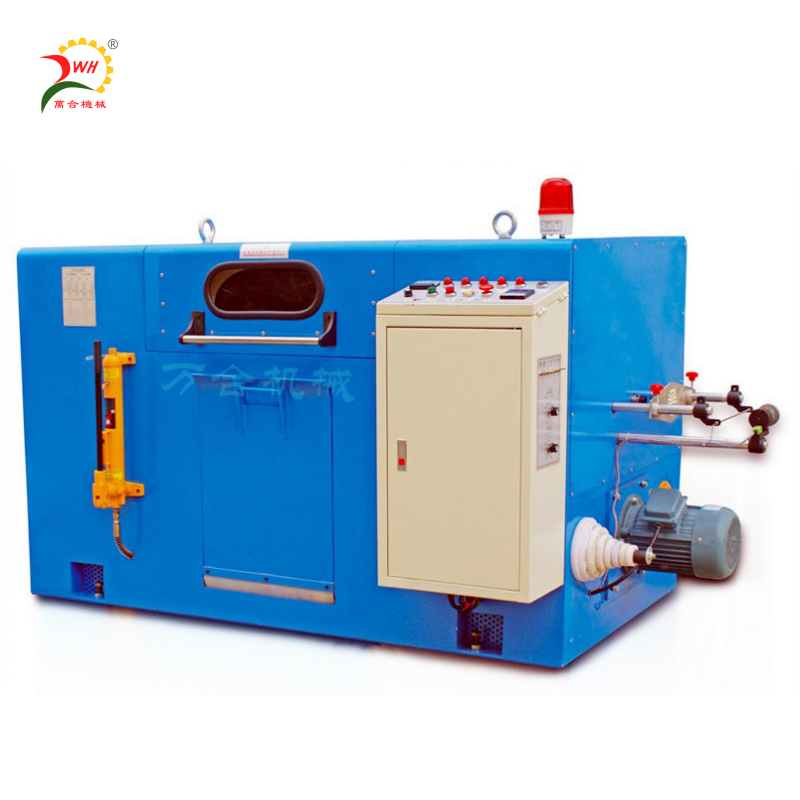

Φ500㎜高速绞线机
Φ500㎜High speed stranding
一、用途Application：
适用于软/硬导体线、电子线的绞合。如：裸铜线、漆包线、镀锡线、铜包铝、合金线；电源线、电话线、音频线、视频线、汽车线、网络线等。
Full automatic double-twist type wire twist machine, strengthening design of the traction system, can twist2.5mm² copper wire, it can also apply on the core wire pair twisted or small core wire cabling.
二、技术参数Technical Parameters：
型 号 Model | WH-HST-500 （2200RPM/min） | WH-HST-500 触摸屏Touch screen （3000RPM/min） | WH-HST-500PLC （3000RPM/min） |
驱动马达 Drive motor | 5HP Motor+ Frequency adjust speed | 7.5HP Motor+ Frequency adjust speed | 7.5HP Motor+ Frequency adjust speed |
单根线径 Diameter of each wire | Φ0.08~0.45㎜ | ||
绞合截面积 Stranded cross-sectional area | 0.05~2.5mm2 | ||
线盘装铜量 Weight of conductor on reel | 250㎏ | ||
绞 向 Twisting direction | “S” or “Z” direction | ||
机械尺寸 Mechanical Dimensions | L2030×W1020×H1200 | ||
机械重量 Machine net weight | 2000㎏ | ||
使用电源 Voltage frequency | 50HZ/380V（三相五线Three-phase five-wire） | ||
绞 距 Twist pitch range | 标准绞距Standard lay length：4.46～40.49mm 加大绞距Maximum lay length 8.4~101.76mm | ||
排线装置 Cable device | 加强型精密光杆排线器，排辐、排距均可调整 Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will | ||
收线张力 Take-up tension | 磁粉离合器控制张力、大小可调节，被拉线不变型。 The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape. | ||
保护功能 Protective function | ⑴长度到达设定参数自动停机 The length meter will automatically stop when it reaches the set parameters; ⑵设备内部和外部断线，自动停机报警The internal and external disconnection of the equipment will automatically stop and alarm; ⑶安全罩打开自动停机 It will stop automatically when the lift is incorrect ⑷升降不正确自动停机 It will stop automatically when the safety cover is opened。 ⑸红色警示灯：故障停机 Red warning light: shutdown due to failure
| ||
Φ630高速绞线机 Φ630㎜High speed stranding
一、用途Application：
适用于软/硬导体线、电子线的绞合。如：裸铜线、漆包线、镀锡线、铜包铝、合金线；电源线、电话线、音频线、视频线、汽车线、网络线等。
Full automatic double-twist type wire twist machine, strengthening design of the traction system, can twist6mm² copper wire, it can also apply on the core wire pair twisted or small core wire cabling.
型 号 Model | WH-HST-630 （1800RPM/min） | WH-HST-630 PLC 触摸屏Touch screen （2200RPM/min） | WH-HST-630加强型 （1800RPM/min） |
驱动马达 Drive motor | 10HP Motor+ Frequency adjust speed | 10HP Motor+ Frequency adjust speed | 15HP Motor+ Frequency adjust speed |
单根线径 Diameter of each wire | Φ0.10~1.0㎜ | ||
绞合截面积 Stranded cross-sectional area | 0.20~6mm2 | ||
绞 向 Twisting direction | 左右绞向可调，“S” or “Z” direction | ||
线盘装铜量 Weight of conductor on reel | 350~450㎏ | ||
机械尺寸 Mechanical Dimensions | L2690×W1300×H1400 | ||
机械重量 Machine net weight | 3850㎏ | ||
使用电源 Voltage frequency | 50HZ/380V（三相五线Three-phase five-wire） | ||
绞 距 Twist pitch range | 标准绞距Standard lay length：11.46～62.67mm 加大绞距Maximum lay length：25.39~138.77mm | ||
排线装置 Cable device | 加强型精密光杆排线器，排辐、排距均可调整 Enhanced polished rod cable arranging device, row spacing and row width can be adjusted at will | ||
收线张力 Take-up tension | 磁粉离合器控制张力、大小可调节，被拉线不变型。 The magnetic powder clutch controls the tension, the size can be adjusted, and the drawn wire does not change shape. | ||
保护功能 Protective function | ⑴长度到达设定参数自动停机 The length meter will automatically stop when it reaches the set parameters; ⑵设备内部和外部断线，自动停机报警The internal and external disconnection of the equipment will automatically stop and alarm; ⑶安全罩打开自动停机 It will stop automatically when the lift is incorrect ⑷升降不正确自动停机 It will stop automatically when the safety cover is opened。 ⑸红色警示灯：故障停机 Red warning light: shutdown due to failure
| ||
