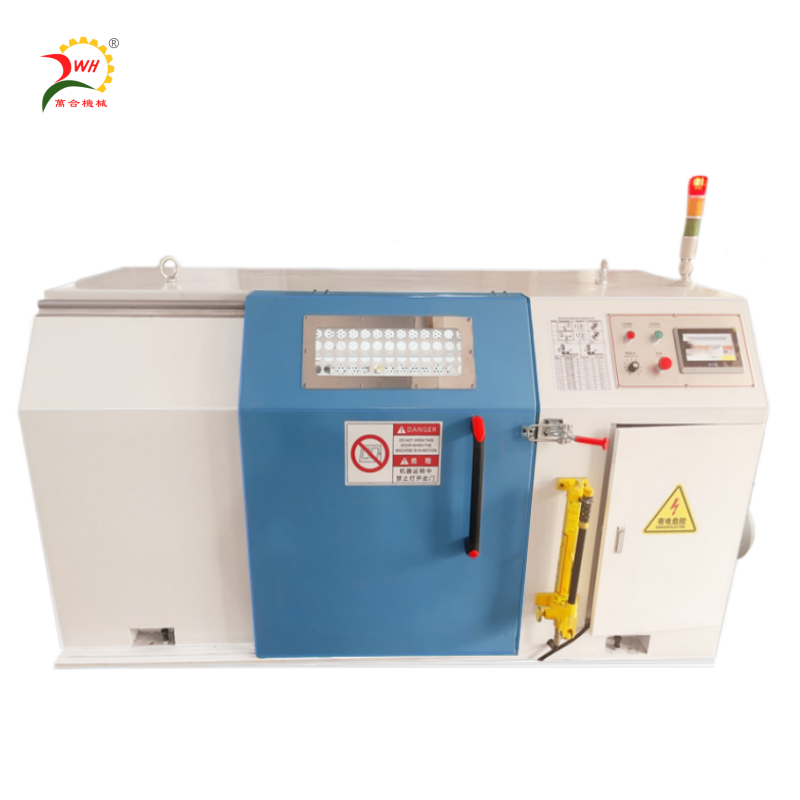

500P/PLC type auto stranding machine

（Change the lead wheel to change the pitch）

请情请联系卢工：13929251879

1.Equipment use:

It is suitable for twisting of more than seven strands of soft/hard conductor wires and electronic wires. Such as: bare copper wire, enameled wire, tinned wire, copper-clad aluminum, alloy wire; power cord, telephone line, audio line, video line, car line, network line, etc.

2.Technical parameter：

Main features: High speed, stable performance, silent

Model: WH-HST-500 (Automatic tension/3000 rpm/Touch screen)Operation mode: The parameter settings such as operation buttons, line speed, tension, laying distance, and disconnection detection are all done through the touch screen panel.

Rotation speed: 3000RPM/min

(6000 twists/min, guide wheel or porcelain eye type tungsten steel bow belt)

Single wire diameter: Copper wire ø0.08~0.45mm；Core wire：ø1.0~3.0mm

Stranded cross-sectional area: 0.05~2.5mm²

Twisting distance: 6.30～52.30mm （Change the lead wheel to change the pitch）。

Main engine power: 7.5HP Dongguan motor + intelligent inverter speed regulation

Stranding direction: left and right (S, Z) free choice, evenly twisted

Cable arrangement: Φ20㎜ reinforced precision polished rod cable arrangement is adopted, and the spoke and row spacing can be adjusted.

Wire take-up tension: PLC+The magnetic powder clutch controls the tension and the size can be adjusted, and the pulled wire does not change shape.

Braking method: Electromagnetic brakes are used, and automatic braking protection is provided for internal and external disconnection.

Upper and lower spools: Manual hydraulic pump lifts and stops automatically at the lower limit, which is safe and convenient to operate.

Machine Bearings: The main bearings are lubricated with Japanese NSK high-precision bearings and high-temperature grease.

Strand length: m/min = twist distance × 2÷1000 × rotation speed per minute (number of revolutions)

Ambient temperature: Humidity ≤90%, if it exceeds, please dry it before turning it on

Loading copper quantity: MAX250kg

Power supply: 50HZ/380V (three-phase five-wire)

Appearance size: L2200×W1080×H1166mm (net weight of the whole machine is about 2000kg)
