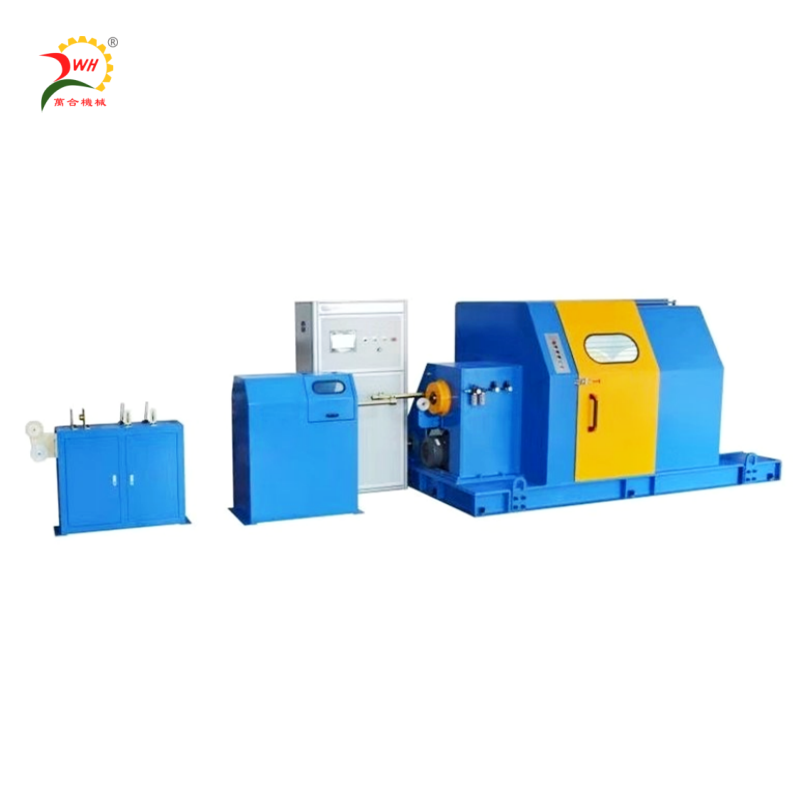

Φ630-1000悬臂式单绞成缆机

Φ630-1000悬臂式单绞成缆机

用途:    本设备主要用于数据电缆、HDMI线缆、动力电缆、裸铜线(细线)、屏蔽层电缆、控制电缆等电缆多条集合成缆。

USE:    This equipment is mainly used for data cables, HDMI cables, power cables, bare copper wires (thin wires), shielded cables, control cables and other cables.

13829120479
产品详情

Φ630~1000悬臂式高速单绞成缆机

Φ630~1000 Cantilever High-speed Single Twisting Machine


一、用途:

本设备主要用于数据电缆、HDMI线缆、动力电缆、裸铜线(细线)、屏蔽层电缆、控制电缆等电缆多条集合成缆。

Application:This equipment is mainly used for data cables, HDMI cables, power cables, bare copper wires (thin wires), shielded cables, control cables and other cables.


二、设备组成:

由单绞主体,电控系统,中心包带机,侧放包带架及放线等组成。

Composition: single-twisted main body, electric control system, center strapping machine, side strapping rack and wire pay-off, etc.


三、主要特点:

1.电脑节距、无引取轮、动力排线、线缆过线路径增大转向导轮直径以尽量减少线缆弯曲。

2.绞线主体采用悬臂式结构,回转体旋转惯性小、转速高、运转平稳。

3.卷取箱沿直线导轨左右移动线盘,节距稳定无级可调,绞合线缆排位整齐,张力均衡。

4.与传统单绞机相比,避免高速时排位丝杆断裂带来的不安全因素。

5.装卸线盘方便,劳动强度小。

Main advantages:

1. Computer control pitch, non-tension traction wheel, motion wiring. wire cable passing path, increase the traction wheel diameter to reduce the wire cabin curve.

2. The main body of the stranded wire cantilever structure, the rotating body has small rotating inertia, high speed and stable operation.

3. The winding box moves the spool left and right along the linear guide rail, the pitch is stable and steplessly adjustable, the stranded cables are arranged neatly, and the tension is balanced.

4. Compared with the traditional single twister, it avoids the unsafe national quality caused by the breakage of the ranking screw at high speed.

5. It is convenient to load and unload the reel, and the labor intensity is small.


四、技术参数Technical Parameters:


型 号

Model

WH-XD630

WH-XD800

WH-XD1000

WH-XD1250

进线单根直径

Single wire OD

Φ0.5~3.0㎜

Φ0.8~3.0㎜

Φ0.8~3.0㎜

Φ1.0~5.0㎜

绞合直径

Twisted diameter

Φ3~10㎜

Φ3~20㎜

Φ3~ 25㎜

Φ10~30㎜

绞   距

Twist pitch range

25~180㎜

30~300㎜

30~350㎜

30~450㎜

转   速

Rotating speed

MAX 800RPM

MAX 600RPM

MAX 500RPM

MAX 450RPM

驱动马达

Drive motor

15HP Motor+

Frequency converter

20HP Motor+

Frequency converter

25HP Motor+

Frequency converter

30HP Motor+

Frequency converter

放线线轴

shaft of pay-off

Φ500㎜

Φ500~630㎜

Φ500~630㎜

Φ500~630㎜

收线线轴

shaft of take-up

Φ630㎜

Φ800㎜

Φ1000㎜

Φ1250㎜
